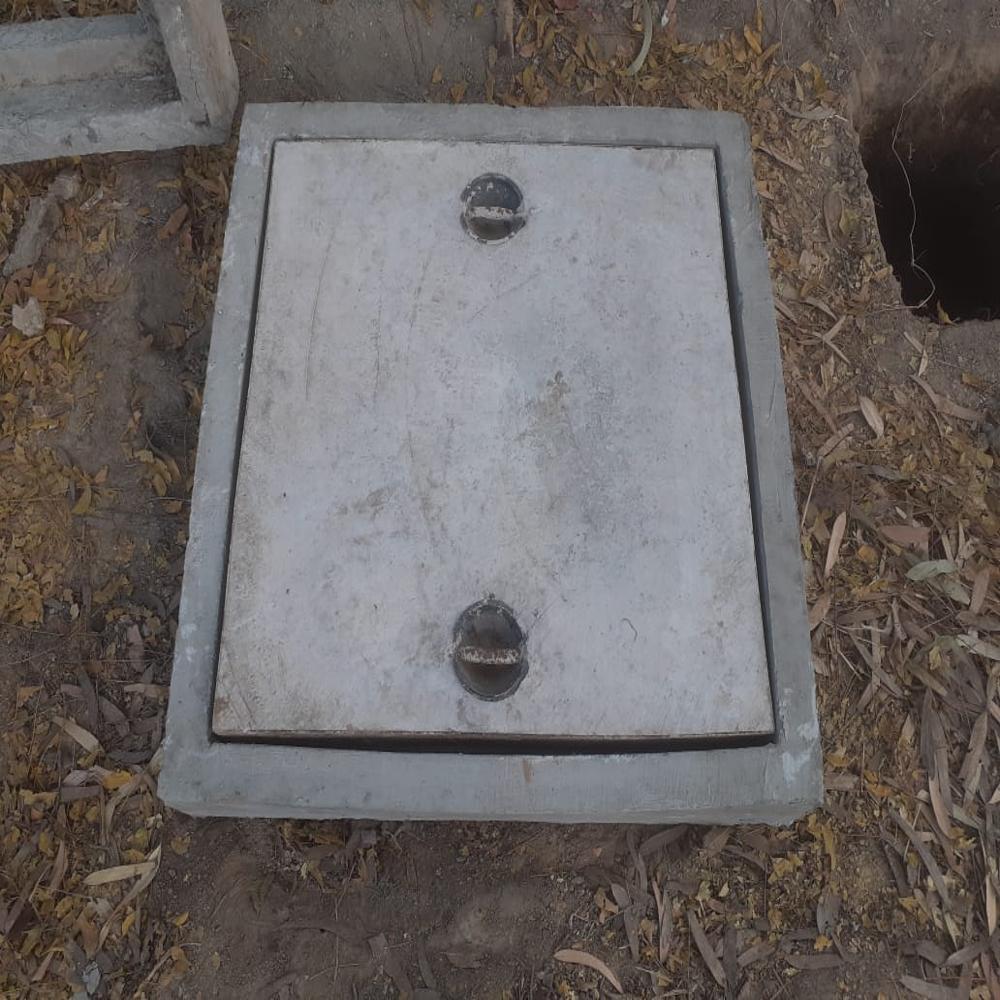

Square RCC Chamber

Name: Square RCC Chamber
Brand: Gupta Industries
Price: 1950.0 INR
Availability: InStock

Price 1950.0 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

Square RCC Chamber Specification

Diameter
Not Applicable (Square)

Bend Radius
Not Applicable (Rigid structure)

Tensile Strength
As per RCC M25 standards

Coating Type
Uncoated (bare RCC)

Temperature Range
-10C to +60C

Tolerance
5 mm

Yield Strength
As per reinforcement steel in RCC

Connection Type
Manual placement/setting

Sealing Type
Gravity-fit lid (optional rubber seal available)

Flexibility
Rigid

Product Type
RCC Chamber

Material
Reinforced Cement Concrete (RCC)

Connection
Preformed for manual placement

Shape
Square

Standard
IS 12592 / IS 456

Surface Treatment
Smooth Finish

Outer Diameter
Not Applicable (Square design)

Section Shape
Square

Length
500 mm - 1000 mm (customized options available)

Thickness
50 mm - 100 mm (customizable)

Color
Grey

Usage
Cable chamber, manhole cover, junction chamber

Rated Pressure
Designed for pedestrian/light vehicular load

Application
Underground utility protection, electrical & telecom cable housing

Material Grade
M25 (Typical RCC Grade)

Maintenance
Low maintenance, long life span

Compatibility
Suitable for all types of cables, can be customized for duct entry

Waterproofing
Can be supplied with waterproofing on request

Reusability
Reusable if not damaged during removal

Installation
Easy to install by manual labor without machinery

Dimensions
Standard: 600x600mm, 900x900mm, Custom on order

Weight
Varies by size and thickness (typically 40-100 kg)

Load Capacity
Light vehicular traffic (up to 3.5 tons, varies by model)

Edge Finish
Chamfered edges for safe handling

Reinforcement
Tor steel bars as per IS standards

Lid Feature
Lift handles for easy removal (metal integrated)

Resistant To
Corrosion, weather, UV rays

Square RCC Chamber Trade Information

Minimum Order Quantity
50 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Square RCC Chamber

Discover our Popular Square RCC Chamber, the brilliant choice engineered with reinforced Tor steel bars as per IS standards. This marvelous chamber comes with integrated metal lift handles for effortless lid removal and supports light vehicular loads up to 3.5 tons. With its excellent resistance to corrosion, UV rays, and weather, it ensures longevity and minimal maintenance. Limited stock available-try now and enjoy easy installation, customizable sizes, waterproofing on request, safe chamfered edges, and best-in-class durability for all underground utility needs.

Premium RCC Chamber: Material, Usage, and Versatility

Fabricated with high-grade reinforced cement concrete and reliable Tor steel bars, the Square RCC Chamber boasts durable strength and a smooth finish. Ideally used as cable chambers, manhole covers, and junction chambers, it excels in protecting underground utilities. Its rigid structure and chamfered edge promote safe handling. Compatible with all types of cables and customizable for duct entries, this chamber delivers outstanding performance for a broad range of cable management and utility protection applications.

Export Markets, Sampling, and Transactions Made Easy

Shipped worldwide, our Square RCC Chambers have gained traction in major export markets across Asia, Africa, and the Middle East. For new partnerships, samples can be provided so clients can estimate the product's marvelous quality and fit at a minimal outlay. Payment terms are designed for convenience and transparency, supporting trusted business relationships and quick order fulfillment. Get in touch today for detailed export estimates and streamlined procurement.

FAQ's of Square RCC Chamber:

Q: How is the Square RCC Chamber installed?

A: The chamber is designed for easy manual placement, not requiring heavy machinery. Installation typically involves positioning by manual labor, making it convenient for a wide range of site conditions.

Q: What load capacity does this RCC chamber support?

A: Our chamber is engineered for light vehicular traffic, with a capacity up to 3.5 tons (varies by model), making it suitable for use under pathways, driveways, and utility corridors.

Q: When can I request waterproofing for the chamber?

A: Waterproofing can be requested at the time of order placement. We offer a waterproofed variant to further enhance protection for sensitive underground utilities.

Q: Where can the Square RCC Chamber be used?

A: It is ideal for underground utility protection, such as electrical and telecom cable housing, manhole covers, and junction chambers in public, industrial, or commercial facilities.

Q: What material features make this chamber durable?

A: Made from reinforced cement concrete with Tor steel bars to IS standards, the chamber resists corrosion, UV rays, and harsh weather, ensuring a long lifespan and low maintenance.

Q: What are the benefits of using a gravity-fit lid design?

A: The gravity-fit lid design ensures quick, tool-free access for maintenance while the integrated handles provide ease of removal. Optional rubber seals are available for tighter sealing.
